Krieghoff K-80 Barrels

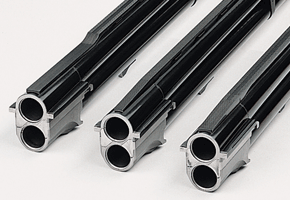

Different ribs available for the K-80:
Tapered step rib (trap)
Tapered flat rib (mainly sporting) |
Trap Special high-post tapered rib (trap)
Fully adjustable |
Interchangeable Front-Hangers for K-80 O/U-Barrels for Point-of-Impact (POI) Adjustment
**Fronthanger changes the POI of Bottom Barrel only.**
The point of impact of the bottom barrel of the K-80 can be raised or lowered in relation to the top barrel simply by changing the front barrel hanger.
The hangers have dovetails of varying width which change the height and POI of the bottom barrel. If you wish to have the bottom barrel pattern higher, select a ring which is thinner at the dovetail. A thicker ring will move the pattern lower.
For easy reference, each hanger is marked with a small number visible from the muzzle. The lower the number, the higher the point-of-impact. There are nine different hangers for the non-choke-tube barrel (#1 to #9) and eight different hangers for the choke-tube barrel (#1 to #8) available. Going up or down one number lowers or raises the point-of-impact by approximately 2" to 2 1/2" at 30 yards.
To install a new hanger, drive out the retaining pin, from left or right, and slide off the hanger to the front. Replace with the new hanger and reinstall the pin.
Krieghoff K80 Guns for Sale
Krieghoff K80 for Sale
Pre Owned Shotguns
Click for Barrel Specifications
|
Below is a complete list of interchangeable K-80 barrel specifications. ***
Weights are approximate.
| |
Gauge/Chamber |
Length |
Chokes |
Rib |
Ounces |
Pounds |
|
Trap
| O/U |
12ga/2-3/4" |
30" |
IM/F |
Tapered step rib, 12-8mm |
55 1/2
|
3lbs 7oz
|
| |
12ga/2-3/4" |
30" |
Choke Tubes (5) |
Tapered step rib, 12-8mm |
57 1/2
|
3lbs 10oz
|
| |
12ga/2-3/4" |
32" |
IM/F |
Tapered step rib, 12-8mm |
58 1/4
|
3lbs 10oz
|
| |
12ga/2-3/4" |
32" |
Choke Tubes (5) |
Tapered step rib, 12-8mm |
59 3/4
|
3lbs 12oz
|
| |
12ga/2-3/4" |
32" |
Choke Tubes (5) |
Trap Special High-post, fully adjustable rib, 12-8mm |
60
|
3lbs 12oz
|
| Unsgl |
12ga/2-3/4" |
32" |
F |
Tapered step rib, 12-8mm |
55 1/8
|
3lbs 7oz
|
| |
12ga/2-3/4" |
32" |
Choke Tubes (3) |
Tapered step rib, 12-8mm |
56 1/4
|
3lbs 7oz
|
| |
12ga/2-3/4" |
34" |
F |
Tapered step rib, 12-8mm |
56 1/2
|
3lbs 8oz
|
| |
12ga/2-3/4" |
34" |
Choke Tubes (3) |
Tapered step rib, 12-8mm |
57 1/4
|
3lbs 9oz
|
| |
12ga/2-3/4" |
34" |
Choke Tubes (3) |
Trap Special High-post, fully adjustable rib, 12-8mm |
58
|
3lbs 10oz
|
| TopSg |
12ga/2-3/4" |
34" |
Choke Tubes (3) |
Trap Special High-post, fully adjustable rib, 12-8mm |
58 |
3lbs 10oz |
|
Skeet
| O/U |
12ga/3" |
28" |
S/S |
Tapered flat rib, 10-6 mm
|
52 1/2 |
3lbs 5oz |
| |
12ga/3" |
28" |
Choke Tubes (5) |
Tapered flat rib, 10-6 mm |
55 3/4 |
3lbs 7oz |
| |
12ga/3" |
30" |
S/S |
Tapered flat rib, 10-6 mm |
54 |
3lbs 6oz |
| |
12ga/3" |
30" |
Choke Tubes (5) |
Tapered flat rib, 10-6mm |
57 3/4 |
3lbs 9oz |
| |
12ga/3" |
32" |
S/S
|
Tapered flat rib, 10-6mm
|
57
|
3lbs 9oz |
|
Sporting
| O/U |
12ga/3" |
28" |
Choke Tubes (5) |
Tapered flat rib, 10-6mm |
56 3/4 |
3lbs 7oz |
| |
12ga/3" |
30" |
Choke Tubes (5) |
Tapered flat rib, 10-6mm |
58 |
3lbs 10oz |
| |
12ga/2-3/4" |
30" |
IM/F |
Tapered flat rib, 10-6mm |
57 |
3lbs 9oz |
| |
12ga/2-3/4" |
32" |
IM/F |
Tapered flat rib, 10-6mm |
58 1/4 |
3lbs 10oz |
| |
12ga/3" |
32" |
Choke Tubes (5) |
Tapered flat rib, 10-6mm |
61 1/8 |
3lbs 13oz |
| |
12ga/3" |
34" |
M/IM |
Tapered flat rib, 12-8mm |
58 |
3lbs 10oz |
|
34" Sporting Bbls |
|
Discontinued |
March 2009 |
|
|
|
Floating Rib Barrels – For K-80 Pro Sporter
| |
12ga/3" |
30" |
Choke Tubes (5) |
Tapered flat rib, 12-8mm |
59 |
3lbs 11oz |
| |
12ga/3" |
32" |
Choke Tubes (5) |
Tapered flat rib, 12-8mm |
61 2/3 |
3lbs 14oz |
|
Small Bore Barrels for K-80
| |
20ga/3" |
30" |
Choke Tubes (5) |
Tapered flat rib, 10-6mm |
57 |
3lbs 9oz |
| |
20ga/3" |
32" |
Choke Tubes (5) |
Tapered flat rib, 10-6mm |
64 |
4lbs 0oz |
| |
28ga/3” |
30" |
Choke Tubes (5) |
Tapered flat rib, 10-6mm |
57 |
3lbs 9oz |
| |
28ga/3” |
32" |
Choke Tubes (5) |
Tapered flat rib, 10-6mm |
59 2/3 |
3lbs 12oz |
| |
28ga Barrels |
|
Scheduled for |
Summer 2009 Introduction! |
|
|
|
|
Choke Tubes (CT) available are:
Cylinder (C), Skeet (S), Improved Cylinder (IC), Light Modified (LM), Modified (M),
Light Improved Modified (LIM), Improved Modified (IM), Full (F), SuperFull (SF)
Choke Tubes available in standard Factory Steel or optional Titanium.
|
The point-of-impact of K-80 lower O/U-barrels can be raised or lowered.
The point-of-impact on K-80 Trap Special and Pro Sporter top O/U barrels can be raised or lowered. |
In the event that the barrel of your choice is not listed here,
you may contact your Authorized Krieghoff Dealer for the availability of additional barrel configurations. |
*Carrier barrels are standard Krieghoff barrels modified by Briley Manufacturing or Kolar to the customer’s specifications.
They are lightened to hold small gauge tubes and must not be shot with 12 gauge shells. |
| **Special order only. |
| ***New barrels require expert fitting before use. |
|
|
|
12 Gauge - Available in standard Factory Steel and optional Titanium
|
| 00 |
= C |
= Cylinder |
= .000" constriction |
| 0 |
= S |
= Skeet |
= .005" constriction |
| 1 |
= IC |
= Improved Cylinder |
= .010" constriction |
| 1+ |
= LM |
= Light Modified |
= .015" constriction |
| 2 |
= M |
= Modified |
= .020" constriction |
| 2+ |
= LIM |
= Light Improved Modified |
= .025" constriction |
| 3 |
= IM |
= Improved Modified |
= .030" constriction |
| 4 |
= F |
= Full |
= .035" constriction |
| 5 |
= SF |
= Super Full |
= .040" constriction |
|
|
20 Gauge - Available in standard Factory Steel and optional Titanium
|
| 00 |
= C |
= Cylinder |
= .000" constriction |
| 0 |
= S |
= Skeet |
= .005" constriction |
| 1 |
= IC |
= Improved Cylinder |
= .010" constriction |
| 1+ |
= LM |
= Light Modified |
= .015" constriction |
| 2 |
= M |
= Modified |
= .020" constriction |
| 2+ |
= LIM |
= Light Improved Modified |
= .025" constriction |
| 3 |
= IM |
= Improved Modified |
= .030" constriction |
| 4 |
= F |
= Full |
= .035" constriction |
|
|
28 Gauge - Available in standard Factory Steel only
|
| 00 |
= C |
= Cylinder |
= .000" constriction |
| 0 |
= S |
= Skeet |
= .005" constriction |
| 1 |
= IC |
= Improved Cylinder |
= .010" constriction |
| 1+ |
= LM |
= Light Modified |
= .015" constriction |
| 2 |
= M |
= Modified |
= .020" constriction |
| 2+ |
= LIM |
= Light Improved Modified |
= .025" constriction |
| 3 |
= IM |
= Improved Modified |
= .030" constriction |
| 4 |
= F |
= Full |
= .035" constriction |
|
|
| Factory choke tubes in the K-80, KX-5, and KS-5 are the same and are interchangeable. |
|
|
|
