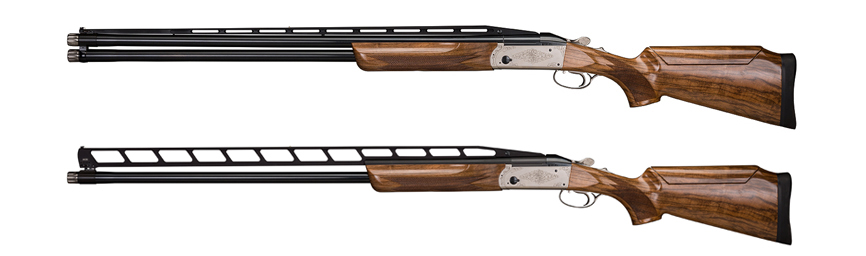

Krieghoff K-80 ACS

POI on the O/U barrel ranges from a flat 50/50 to a 70/30 pattern high. The flatter POIs desirable for Skeet and Sporting Clays are achieved through selecting either the 50/50 or 60/40 interchangeable adjustment wedge included with the ACS model and adjusting the stock to achieve a “bead on bead” sight picture. With the 60/40 adjustment wedge installed and a “figure-eight” sight picture down the rib, a 70/30 pattern desirable for Trap is easily attained.

The Unsingle barrel features a similar adjustment wheel found on the Trap Special model. POI can range from 70/30 to a full pattern high on the UNS barrel, perfect for quickly acquiring the challenging Handicap and Singles targets.

Built around the proven K-80 receiver, the ACS model presents a “no limits” option for shooters who welcome the challenge of varying target presentations and enhancing their skills. The ACS high profile design reduces perceived recoil and provides fast target acquisition in all three games.

Delivered with the K-80 Standard grade engraving pattern finished in nitride silver for a distinguishing touch, The K-80 ACS is ready for any clay target action you choose. Yes, with one gun you can do it all.

Click for Specifications


12 Gauge; 3“ chambers


O/U barrel comes standard with adjustment wedge for flat shooting 50/50 POI (approx.).

Additional adjustment wedge for adjustment to 60/40 POI (approx.) included.
70/30 POI possible through adjusting sight picture to “Figure-8” pattern

UNS barrel comes standard with 70/30 POI adjustable to (approx.) a full pattern high.
Rib:     For O/U:  TF 12-8mm (approx. 1/2:” to 1/3”)  – Tapered Flat Floating Rib
For UNS: TS 12-8mm (approx. 1/2” to 1/3”)   – Tapered Step Floating Rib
Chokes:     Choke Tubes - 8 Factory Steel chokes included.

Available are Cylinder (C), Skeet (S), Improved Cylinder (IC), Light Modified (LM), Modified (M),  Light Improved Modified (LIM), Improved Modified (IM), Full (F), and Super Full (SF)

Click here for choke tube information

30", O/U, CT/CT (Std:S,2xIC,M,IM), TF Floating Rib - or/td>
32", O/U, CT/CT (Std:S,2xIC,M,IM), TF Floating Rib
34”, Unsingle (UNS), CT (Std: M,IM,F), TS Floating Rib


White pearl front bead and metal center bead


Case hardened, nickel plated steel receiver with Nitride Silver finish.


Single selective mechanical trigger, adjustable for finger length. Trigger pull: Approximately 3-3/4 lbs.


Top tang push button safety. Can be locked in “off“ position


Fine-checkered select Turkish walnut with satin epoxy finish. #6 Monte Carlo Stock with Adjustable Comb designed for Floating Rib.

Click here for details and dimensions


#3 Trap


Standard is classic K-80 scroll engraving. Optional engravings available


Approximately 8 3/4 lbs.
